HD-TVI / 960H DVR

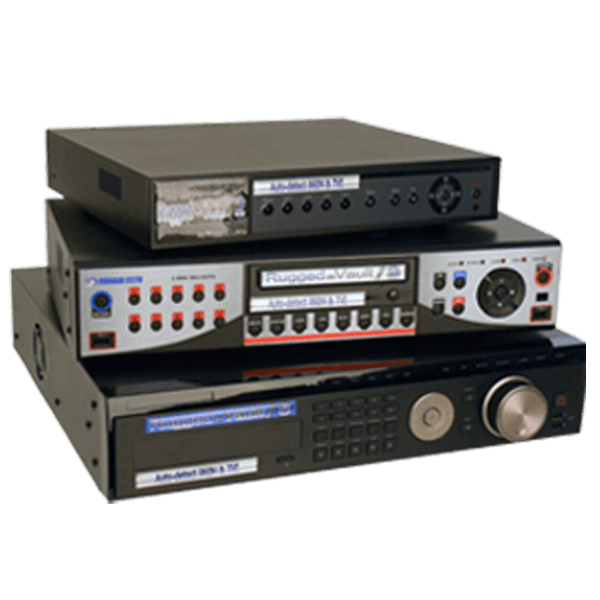

Rugged Vault  Specifications HD-1080p & Communication Over A Single Coax Rugged Vault Manual Reliable long-distance video without the need for CAT5, routers, or network switches. Long cable runs? No problem. Our DVR systems don’t rely on network wiring or internet gear. Rugged Cams brings you the Ultimate Hybrid DVR that delivers HD-1080p Megapixel Video – PLUS – it recognizes any Legacy Analog cameras you may already have. No Hassle – HD‑TVI video over coax up to ~1500 ft (typical)—single BNC/12 VDC power cabling per camera. The New Rugged Vault Hybrid DVR from Rugged Cams, is stuffed with every feature that you and your business will need for bringing beautiful, HD-1080p Video to your Desktop, Laptop, Phone or Tablet. Manage it from anywhere – and on any device! Many of our Megapixel Cameras Have ZOOM LENS Control from the DVR or your Phone/Tablet Since the Rugged Vault Hybrid DVR can automatically sense between HD-TVI cameras and any Legacy Analog cameras you may already have, this DVR is ready to grow with you as you slowly replace old cameras with new Megapixel cameras. Mix & Match any way you like! The Rugged Vault records full-frame, real-time video on every channel — even at high resolutions. The Rugged Vault Hybrid DVR has a very easy to navigate Menu structure that is easy to grasp right away. You will find that it is really simple to navigate through the many options for how and when to record – real time or motion-based – and can even speed up the process of searching for events in your recorded footage, with Smart Search and Event Search features that can find the evidence you need in a matter of minutes. This great Hybrid DVR series has so many features, we literally cannot list them all here. Built‑in per‑channel signal equalization helps compensate for cable signal loss. It also can give you Alarm Notifications on your Phone or Tablet (via our handy App), a Gigabit Ethernet Port, Two-Way Audio Communication, and many types of recording to choose from (External Sensor, Motion, Audio Detection (Automatic detection of HD‑TVI and most analog legacy cameras—confirm compatibility with specific brands.), Text/POS, etc.). Talk to one of our Sales Engineers today about choosing the model and Chassis that best suits your needs. Capacities include: 2 Hard Drives – 3 Hard Drives – 6 Hard Drives – & External RAID Storage Features Rugged Vault/6 Rugged Vault/3 Rugged Vault/2 Jog-shuttle Yes N/A N/A H/W RAID ★ RAID 1/5 Options ★ RAID 1/5 Options N/A Rugged Vault/6      Rugged Vault/3      Rugged Vault/2 Universal Yes EOL Yes Coaxitron N/A Privacy Zone N/A Covert Channel Yes Digital Zoom x1 ~ x16 Watermarking Yes Two-way Audio Yes Detection / Search Motion, Sensor, Audio, Text Fan Fail Yes E-mail 5 User with still image Capture Full HD, XGA iSCS Recording N/A DDNS, DHCP, UPNP Yes VMS, RMS Windows Smart Phone (3G/4G) Android, Apple Mac Viewer ★ Apple Mac OS General (Power, Operating Temp, weight, Dimensions, Certifications) Typical Distance Limits (using RG59 or RG6 coax): Signal Type RG59 Distance RG6 Distance CVBS (Analog SD) 300–750 ft 500–1000 ft HD-TVI (720p–1080p) 500–800 ft 800–1200 ft HD-TVI (4MP–5MP) 300–500 ft 500–800 ft HD-TVI (4K / 8MP) 200–400 ft 400–600 ft Rugged Vault/2 Rugged Vault/3 Rugged Vault/6 Power Supply 12V/5A – Level 5 12V/5A – Level 5 90 – 250V, 50/60Hz Consumption 40Watts 60Watts 80Watts Operating Temp. 40° F ~ 104° F 40° F ~ 104° F 40° F ~ 104° F Humidity 10° F ~ 80° F 10° F ~ 80° F 10° F ~ 80° F Weight w/o HDD 6.7 lbs 8.9 lbs 17.7 lbs Dimension 13.40″(W) x 11.80″(D) x 2.30″(H) 16.93″(W) x 10.63″(D) x 3.38″(H) 17.32″(W) x 16.93″(D) x 3.46″(H) Certification CE, FCC, RoHS Compliance CE, FCC, RoHS Compliance CE, FCC, RoHS Compliance   General 12VDC Power Cable Guidelines Wire Gauge Max Distance (for ~12VDC, 500mA load) 24 AWG ~50 ft 22 AWG ~75 ft 20 AWG ~120 ft 18 AWG ~150–200 ft 16 AWG ~250 ft 14 AWG ~300 ft Dimensions Rugged Vault/2 Rugged Vault/3 Rugged Vault/6 System Rugged Vault/2      Rugged Vault/3      Rugged Vault/6  Operating System Embedded Linux Built in flash memory  Language Chinese, Chinese(S), Dutch, English, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Latvian, Persian, Polish, Portuguese, Russian, Spanish, Sweden, Turkish  Time Accuracy  5ppm (12.5 Sec/Month)  Time Sync.  NTP, GMT, DST  User  15 Users (Admin., User1 ~ User14)  Access  Front button, Mouse, Remote Control, Network, Key controller  Hexaplex  Live monitoring, Recording, Playback, Backup, Network, Setup Video Rugged Vault/2      Rugged Vault/3      Rugged Vault/6 System NTSC / PAL – Config switch Input 16 / 8 / 4 BNC Output 1 HDMI, 1 VGA, 1 BNC Loop NA Spot 1 RCA (4 CH: N/A) Audio Rugged Vault/2      Rugged Vault/3      Rugged Vault/6 Input 16, 8, 4 RCA Output 1 HDMI, 1 RCA Video Recording Rugged Vault/2      Rugged Vault/3      Rugged Vault/6 Compression H.264 Speed 0 x 1080p Real time Recording (480fps / 240fps/ 120fps) Resolution 1080p, 720p, 960H, D1, CIF Mode Schedule Event Sensor, Motion, Audio, text Quality 5 Levels Bit Rate 512Kbps ~ 5Mbps/Ch, Adjustable (4CH : 512Kbps ~ 6Mbps/Ch, Adjustable) Audio Recording Rugged Vault/2      Rugged Vault/3      Rugged Vault/6 Compression G.711u Sampling Rate 8KHz Bit Rate 64Kbps Playback Rugged Vault/2      Rugged Vault/3      Rugged Vault/6 Search Go to first rec. time, Go to last rec. time, Go to last search time, Calendar, Log viewer, Smart search, Multi-time & day search, Event search Mode Event only playback, Backward, Pause, Frame by frame, Panorama Speed up (x1 ~ x32, x300) Network Rugged Vault/2      Rugged Vault/3      Rugged Vault/6 Interface Ethernet 10/100/1G Compression H.264 or JPEG Speed Max. 720p 10 fps/ch Resolution Max. 1280 x 720p Mode Bandwidth control Backup Rugged Vault/6 Rugged Vault/3 Rugged Vault/2 Interface USB2.0, DVD, Network USB2.0,  Network USB2.0, Network Format Video clip (Backup viewer), JPEG Still Image, Log List,Setup Data Video clip (Backup viewer), JPEG Still Image, Log List,Setup Data Video clip (Backup viewer), JPEG Still Image, Log List,Setup Data Alarm Rugged Vault/2      Rugged Vault/3      Rugged Vault/6 Pre/Post-Alarm 5sec / 5sec~5min Motion Grid 32 x 24 (NTSC/PAL) Alarm Action E-mail, Channel Popup, Buzzer, Relay, PTZ Preset, Spot, Remote CMS, Front LED Input / Output 4/1 – NC/NO Display Rugged Vault/2      Rugged Vault/3      Rugged Vault/6 HDMI ★ Full HD, XGA VGA Full HD, XGA TV SDTV(720×480/576) Mode 16/9/4/1/SEQ – LIVE, 16/9/4/1 – P.B Camera Adjust SD Cameras Only TV Adjust N/A Camera Title Name English : 20 characters – Chinese, Japanese, Korean : 10 characters External Interface Rugged Vault/6      Rugged Vault/3      Rugged Vault/2 PTZ / Keyboard 2 RS 485 – Terminal Block ATM / POS RS 232C – Terminal Block, Ethernet POS Storage Rugged Vault/6 Rugged Vault/3 Rugged Vault/2 Primary 6 HDD 3 HDD 2 HDD or 1 HDD 1 eSATA External 2 eSATA 1 eSATA 2 HDD or 1 HDD 1 eSATA CD/DVD Yes Yes N/A vault downloads/ Tech support Rugged Vault Downloads: – Manual – Quick Reference Guide – Mac Viewer Software – CMS/VMS Software – CMS/VMS Manuals – Firmware Upgrades
