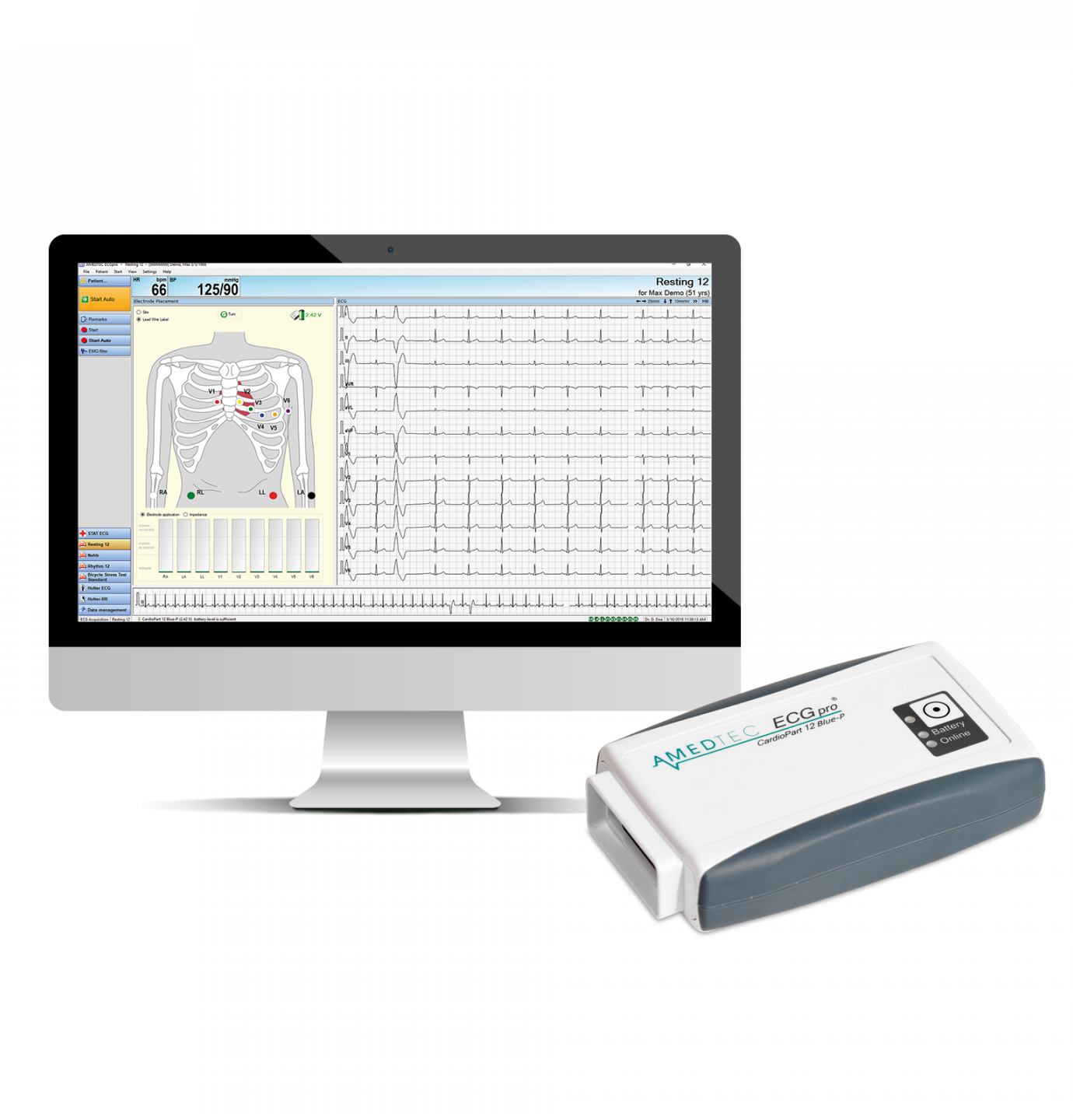

CardioPart 12 Blue The wireless 12-lead PC ECG Wireless ECG transmission with Bluetooth Simple handling Excellent measurement technology Reliable pacemaker detection Perfect for paperless workflow Available as CardioPart 12 Blue with very attractive price-performance ratio. Expert installation provided by remote support included. Technical Data Dynamic range /- 316 mV DC Sample rate 8000 Hz [125 μs] for each of the 10 electrode channels Resolution 1 μV/LSB [0.01 mm] Frequency range 0 – 150 Hz Pacemaker detection Digital monitoring of all electrodes Input impedance > 50 MOhm Electrodes check Frequency analysis and impedance measurement Input protection Against defibrillator shock1) and HF from surgery devices Patient cable connection 15-pin D-Sub for 10-lead patient cable Applied part Type CF PC interface Bluetooth Class 1 or Class 2 Power supply 2 Mignon AA alkaline or rechargeable batteries R wage trigger output Via separate radio module Dimensions 110 mm x 64 mm x 28 mm Weight 160 g Standards DIN EN 60601-1, DIN EN 60601-2, DIN EN 60601-2-25, ANSI/AAMI EC 11, RED 2014/53/EU
Related products
- Sale!

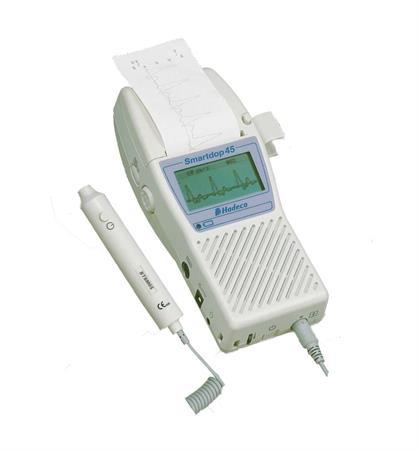

Accessories Bidirectional Doppler - Hadeco Smartdop 45 $ 90.72 Select options This product has multiple variants. The options may be chosen on the product page

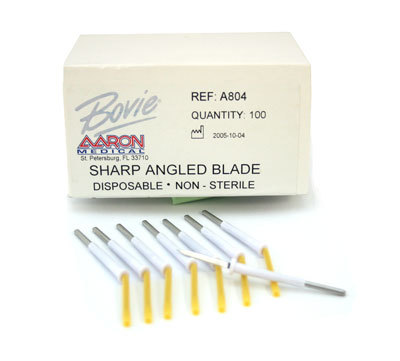

Aaron Sharp N/S Dermal Tips (Blades) $ 61.78 Select options This product has multiple variants. The options may be chosen on the product page- Sale!
Aaron Change-A-Tip High Temp fine $ 90.48 Select options This product has multiple variants. The options may be chosen on the product page - Sale!

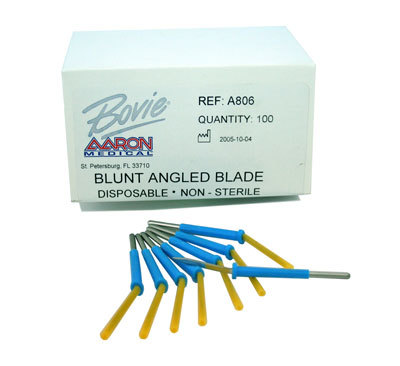

Aaron Blunt N/S Dermal Tips (Blades) $ 61.78 Select options This product has multiple variants. The options may be chosen on the product page
Aaron Change-A-Tip High Temp flex

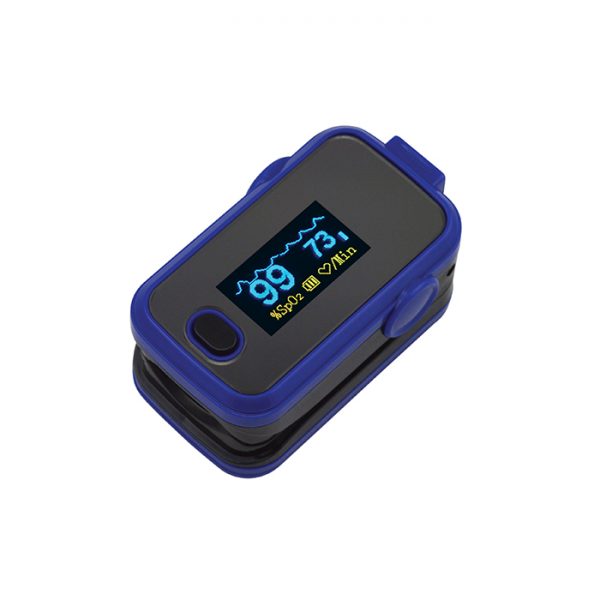

Fingertip Pulse Oximeter New Model
Aaron Disposable Cautery High Temp 2″ loop tip
Aaron Bovie BiPolar Cable
Aaron Bovie BiPolar Cable A942
Aaron Disposable Cautery High Temp fine

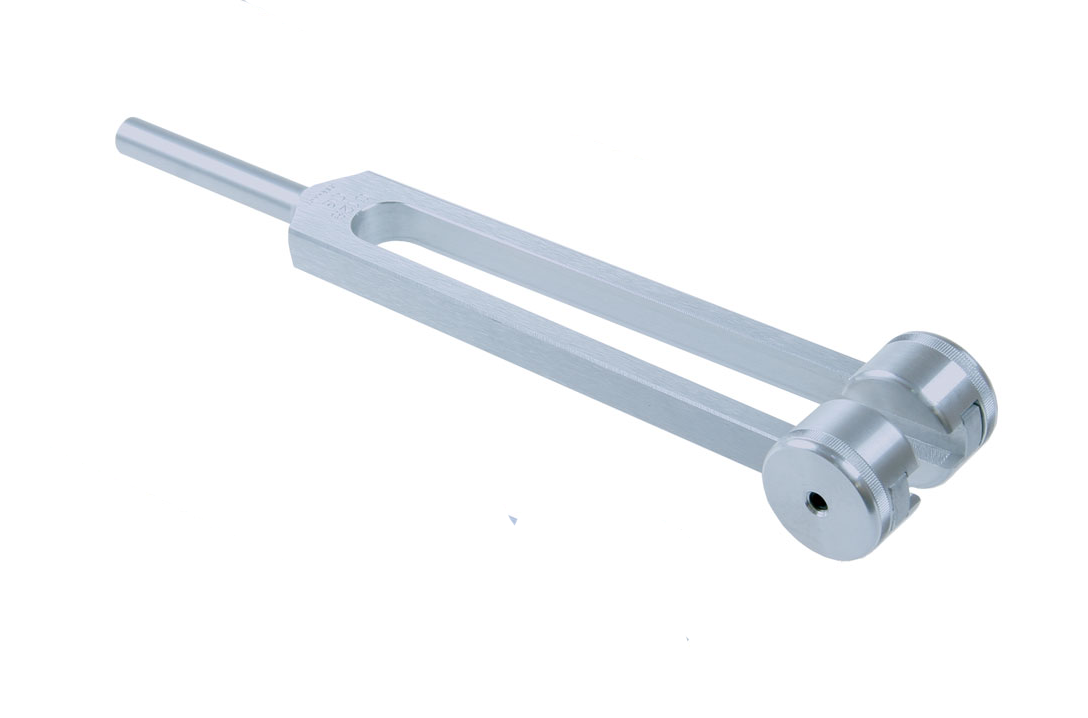

Tuning Fork C128 with Weights
